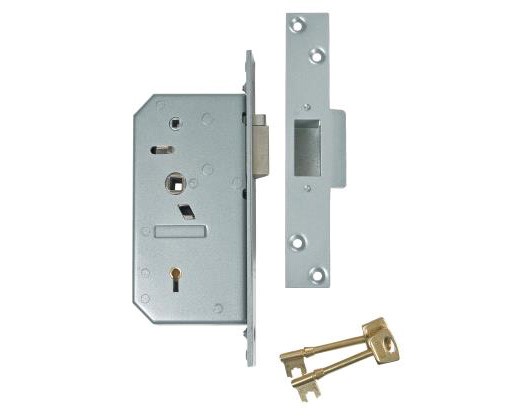

Union 3R35 / 3R35X - 5 Detainer Deadlocking Latch
- Size: 50mm Backset
- Finishes:
- Polished Brass
- Satin Chrome
- Features:
- Handles not included
- For timber door hinged on the left or the right
- Keys are suitable for use on doors up to 50mm thick
- Detainer style locks provide a higher number of key combinations than lever locks
- 3R35X: suitable for use on escape doors
- For use with handles ref 3R35F
- Handles can be secured from both sides
- When closed, the door is secured by an automatic deadlocking action on the latch
- A hold back snib can be used to keep the latch in the withdrawn position
- 3R35X: as the 3R35 but the inside handle cannot be locked allowing
free egress at all times
- Force resistant, anti-pick and anti-saw security features
- Available with square forend and striking plate
- 10mm latch bolt throw
- 3R35 only: can be supplied on patented RKS key section to prevent
illicit copying

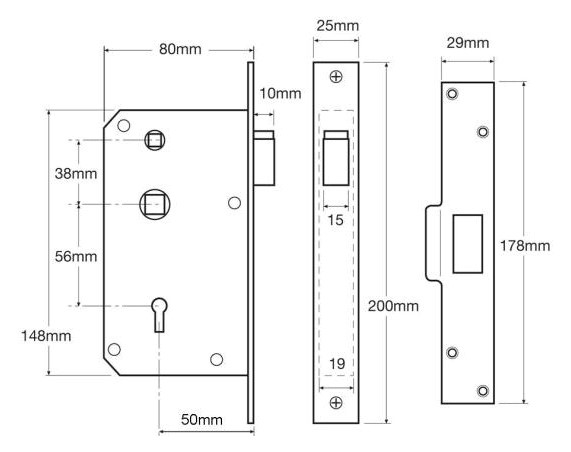

- Case Size: 80mm
- Centres: 56mm
- Case: Silver powder coat
- Latch Bolt: Sintered iron
- Follower: Sintered iron
- Locks are handed – please state required handing when ordering
- Rebate Kit: B-3R35R (13mm, left or right handed)
- Keying Groups: Standard differ, to pass or masterkeyable with other detainer locks
- Keys Supplied: 2 (extra keys £7 each)
