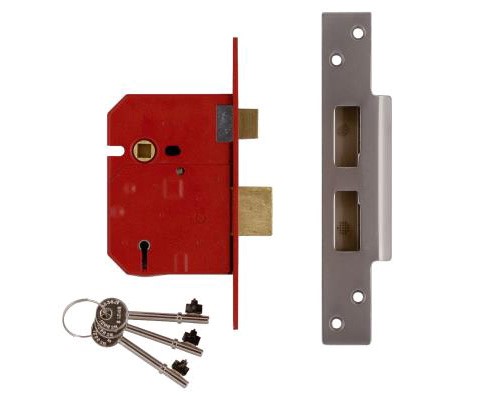

Union 2234E - 5 Lever BS 3621:2007 Mortice Sash Lock
Union 2234E - 5 Lever BS 3621:2007 Mortice Sash Lock - Professional locksmith hardware. Supply and installation available. Call 07846 716 954.
- Handles not included
- For timber doors hinged on left or right
- To suit doors up to 54mm thick
- Deadbolt locked or unlocked by key from either side
- Latch bolt withdrawn by lever handle from either side
- Extended 20mm deadbolt for secure positive deadlocking and additional resistance against attack
DBS Checked
30-45 Min Response
5.0 ★ Rated
Product Details
- Sizes:
- 45mm Backset
- 57.5mm Backset
- Finishes:
- Polished Brass
- Satin Chrome
- Features:
- Handles not included
- For timber doors hinged on left or right
- To suit doors up to 54mm thick
- Deadbolt locked or unlocked by key from either side
- Latch bolt withdrawn by lever handle from either side
- Extended 20mm deadbolt for secure positive deadlocking and additional resistance against attack
- May be keyed alike with 2134E
- NB: Not suitable for master keying
- Reversible latch bolt from outside of case
- Security box striking plate
- Anti-pick and anti-saw security features
- Available with square forend and locking plate
- Case Size: 67mm (2.5") or 79.5mm (3")
- Case: Steel, red powder coat
- Deadbolt: Brass, with hardened steel rollers
- Latch Bolt: Brass, reversible
- Follower: Brass, 8mm square
- Rebate Kit: 2964 (13, 19 or 25mm sizes)
- Keying Groups: May be supplied to pass or differ
- Keys Supplied: 3 (extra keys £6 each)
- Standards:
- Tested to BS 3621:2007
- EN 1634-1 assessed for use on 60 minutes timber fire doors
- EC Certificate number: 0832-CPD-6043
Key Features
Specifications
| Sizes | 45mm Backset, 57.5mm Backset |
|---|---|
| Finish | Polished Brass, Satin Chrome |
| Keys Supplied | 3 (extra keys £6 each) |
| Brand | Union |
| Category | Mortice Locks |
