Union 1334 – Narrow Stile Drawback Lock

The Union 1334 Narrow Stile Drawback Lock is a precision-engineered security solution designed for doors with narrow stiles, such as aluminium or slim-profile timber frames. With its compact 50mm backset and robust internal mechanism, it’s ideal for both residential and light commercial installations.

This lock features a double-thrown deadbolt that can be locked or unlocked using a key from either side. The latch bolt is withdrawn via key operation externally and by handle internally, and can be held in the withdrawn position for convenience using the inside handle rotation function.

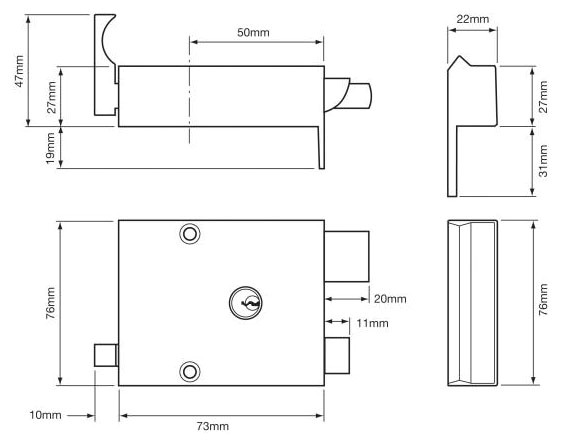

• Size: 50mm Backset
• Finishes Available:
  • Enamelled Brass / Polished Brass
  • Champagne Gold / Polished Brass
  • Champagne Gold / Satin Chrome
  • Satin Chrome / Satin Chrome
  • White Enamel / Polished Brass
  • White Enamel / Satin Chrome
  • Chrome / Chrome
• Features:
  • Double-thrown deadbolt – operated by key from both sides
  • Latch bolt withdrawn by key from outside, handle from inside
  • Handle can retain latch bolt in retracted position
  • Outside Cylinder: Brass, 5-pin tumbler
  • Inside Cylinder: Brass, 2-pin tumbler
  • Keying Groups: May be supplied to pass, differ & master keyed
  • 3 keys supplied (extra keys £5 each)
• Application: Suitable for narrow stile doors, aluminium frames, and slim-profile timber doors
• Installation Area: Available in Birmingham and surrounding regions
