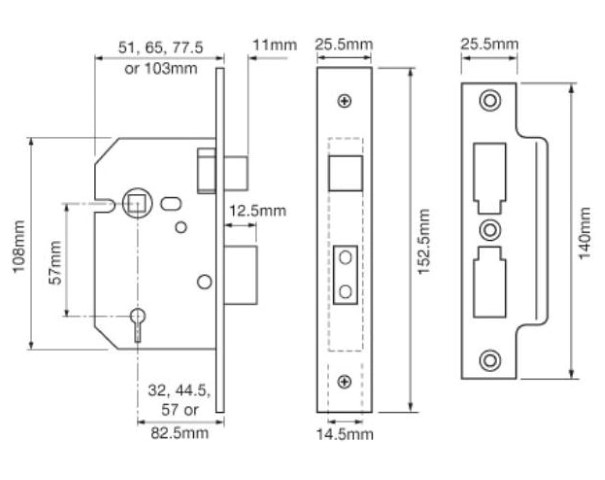

Union 2277 - 3 Lever Mortice Sash Lock
- Sizes:
- 32mm Backset
- 44.5mm Backset
- 57mm Backset
- 82.5mm Backset
- Finishes:
- Polished Brass
- Satin Chrome
- Polished Chrome (2.5" only)
- Features:
- Handles not included
- Deadbolt locked or unlocked by key from either side
- Latch bolt withdrawn by lever handle from either side
- May be keyed alike with 2077 and 2177 (not 51mm case)
- Pierced to accept bolt through furniture
- NB: Not suitable for master keying
- Reversible latch bolt
- Available with square forend and striking plate
- Case Size: 51mm (2"), 65mm (2.5"), 77.5mm (3"), or 103mm (4")
- Case: Steel, silver powder coat
- Deadbolt: Brass, with hardened steel rollers
- Latch Bolt: Brass, reversible
- Follower: Brass, 8mm square
- Rebate Kit: 2979 (13mm, 19mm or 25mm)
- Keying Groups: May be supplied to pass, differ and keyed alike with 2077 and 2177
- Keying:
- 2" = 36 standard differs (M1M - M36M)
- 2.5", 3" & 4" = 100 standard differs (M101M - M200M)
- Keys Supplied: 2 (extra keys £6 each)
